John Deere 2025r

Engine

• Updated isolated Yanmar® TNV Clean & Silent Diesel Engine
• Meets Tier 4-emission standards
• Engine features lower levels of exhaust and emissions
• Isolated engine for quieter operation
• 24.2 gross hp* - 18 PTO hp* (5.8 percent increase in PTO hp over the 4110 Tractor)

* As per 97/68/EC ISO @ rated speed.

Powertrain

• Standard HST transmission with Twin Touch™ foot pedals
  • Allows for increased performance
• Larger tires

Hydraulics

• Standard dual mid-selective control valve with integrated loader joystick
• Two options for raising and lowering the mid-mount mower deck
  • Standard mechanical lift system—uses 3-point hitch to raise and lower mower deck
  • Optional independent lift kit—uses tractor hydraulics to raise and lower mid-mount mower deck, providing the ultimate in versatility and flexibility

Operator station and controls

• Ag tractor family styling
• One-piece hood design
• Updated instrument panel, dash, and throttle design
• Molded foot deck
• Standard folding rollover protective structure (ROPS)
• Standard mid rockshaft with mower deck height adjustment

Implements

• H130 Loaders
• Commonality of loaders and rear implements between 2025R and 2032R
• Updated drive-over deck with the stow-and-go feature

Standard equipment for the 2025R Tractor

• Folding ROPS
• Dual mid-selective control valve with integrated loader joystick control
• Power steering
• Four-wheel drive
• Mid PTO
• Wet-disk brakes
• Cruise control

Yanmar is a U.S.-registered trademark of Yanmar Company Limited.

Power is provided by a durable and efficient high-torque 3-cylinder Yanmar TNV Series diesel engine.


This series of engines was developed to meet environmental requirements for Tier 4 (2025R) emission requirements by featuring lower levels of both exhaust and emissions.

* As per 97/68/EC ISO at rated speed.

Yanmar TNV Series engine offers these features:

• Economical cast-in block cylinder design for good cooling and long life
• Indirect fuel injection on the 2025R uses a pre-combustion chamber to give the engine a smooth and quiet operation
• Direct fuel injection on the 2032R injects fuel on top of the pistons and allows for more efficient combustion and fuel economy
• Aluminum alloy piston with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat transfer characteristics
  • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by gas and generating less noise from the piston slap
  • Higher top rings on the piston and a thinner head gasket greatly reduces the volume of unburned waste gases and increases combustion efficiency
• Timing gear teeth have a roll-off profile giving almost no clash, no noise, and no backlash
• Special flywheel flange seals flywheel air turbulence noise inside the flywheel housing
• High-torque reserve provides plenty of power under heavy load yet retains excellent fuel economy
• Fuel filter with replaceable element
• Full-pressure lubrication system provides filtered oil under pressure to all vital engine parts
• Glow plugs on the 2025R provide quick starts in temperatures down to 0° F. (Optional engine coolant heater attachment will assist starting under more extreme conditions.)
• Air intake heater cold starting aid on the 2032R provides quick starts in temperatures down to
  0° F. (Optional engine coolant heater attachment will assist starting under more extreme conditions.)
• Auto-bleeding fuel system means there is no special bleeding required if the tractor runs out of fuel
• This system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery
• Key start and shutoff eliminates fuel shutoff knob
• Electric solenoid shuts fuel supply off immediately when key is turned off
• See-through coolant recovery tank permits operator to check coolant level without removing radiator cap

• Dry-type air cleaner (1) with safety element (2) keeps dirt and other contaminants out of the engine
  • Safety element (second filter) will protect engine if primary filter would develop a leak
  • Protects engine when servicing primary filter
• Air cleaner service indicator is standard equipment on all models and alerts owner as to when to service the air filter
• The one-piece hood can be easily raised for full access to engine compartment
• Front grille screen and sides on one-piece hood provide excellent flow of air to the engine compartment
• Sealed radiator compartment keeps trash and debris on outside of hood
• Improved fuel fill is relocated to right side of hood allows easier refueling
• Horizontal exhaust discharges fumes away from the operator station, reducing noise and improving operator visibility and comfort.


Yanmar is a U.S.-registered trademark of Yanmar Company Limited.

The 2025R and 2032R hydrostatic (HST) Tractors feature a foot-controlled hydrostatic transmission.

• Low pedal effort makes the transmission very easy to operate
• Fluid under pressure transmits engine power to the drive wheels through a hydraulic pump and motor
• The hydrostatic drive unit functions both as a clutch and transmission

Twin Touch foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

• Infinite ground speeds, even at full throttle, to match the job
• No clutching for fast direction changes
• Faster, easier, and more precise to operate than competitive tractors with treadle pedal design (toe-heel)
  Provides high torque for start up
• Reduces powertrain shock loads
• Large rubber foot pedals were designed for operator comfort and allow for convenient operation of the tractor

Transmission has two speeds - hi and lo range.

• The range lever is located next to the left-hand fender (A), conveniently within reach of the operator.

Kanzaki® HST transmission is used for reliable operation.

Durability features include:

1) Large forged one-piece trunnion shaft with larger support bearings that reduce vibration and noise.
2) Innovative transaxle combines an HST transmission, gear reduction axle, and clutch.
3) Pressure side filtration allows using a finer mesh filter (10 micron) than suction filtration systems used on many competitive tractors.
4) Charge pump used to deliver oil to transmission (some competitive tractors use one pump for transmission and hydraulics).
5) Oil cooler cools transmission oil for longer transmission life.

Kanzaki is a U.S.-registered trademark of Kanzaki Kokyukoki Mfg. Company.

The operator's station has been redesigned for greater operator comfort and visibility.

• Sloping hood design provides improved visibility
• Plenty of room for comfortable operation
• High-back seat with suspension
• Retractable seat belt
• Molded polymer foot deck design on 2025R dampens sound and vibration
• Large, easy-to-read automotive-style instrument panel
• Step-through operator station makes getting on and off the tractor easy
• Fender-mounted handrails, large and easy to grab, assist the operator when getting on and off the tractor
• Controls are on the fenders for operator convenience
• Operator controls are color-coded for easier identification
• Front horizontal exhaust for increased operator visibility

Operator presence system.

• Enhanced operator presence system on the 2032R allows for simpler out-of-seat power take-off (PTO) operation; however, the engine will shut down if the operator leaves the seat when the transmission or mid-PTO is engaged. (See operator's manual for instructions.)
• On the 2025R, if the operator leaves the tractor seat when the transmission, mid PTO, or rear PTO is engaged, the engine will shut down

Instrumentation

Full instrumentation is standard equipment for operating convenience and confidence.
Updated automotive-style instrument panel includes:

• 4-wheel drive (4WD) indicator light
• Tach/hour meter
• Electric fuel gauge
• Oil pressure indicator light
• Alternator indicator light
• PTO engagement light
• Park brake light
• Flashing warning lights
• Coolant temperature light

Suspension seat

Updated seat design offers improved back support for more comfortable operation.

Seat adjusts fore/aft for operator convenience.

Seat adjustment lever is located on the right-hand side of the seat.

Seat flips forward for protection from the elements.

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches.

• All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

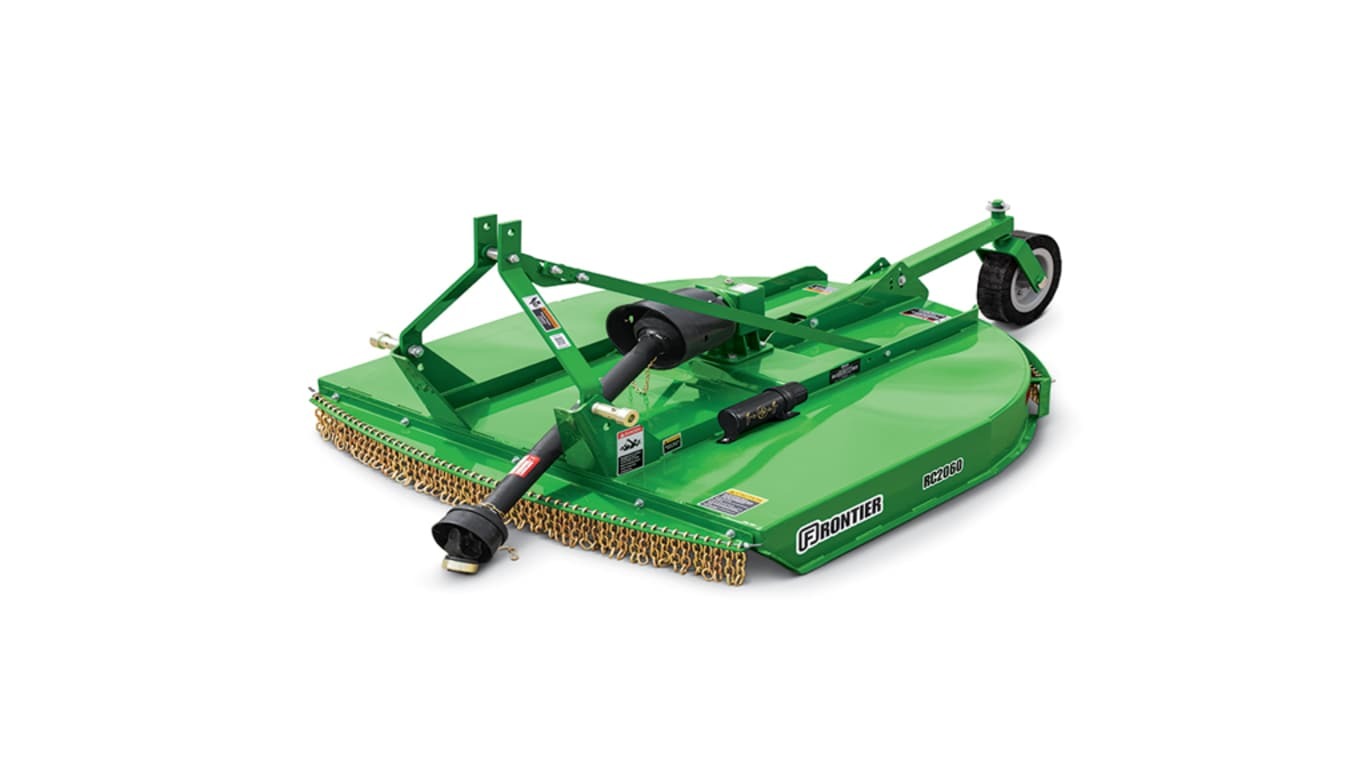

NOTE: In the above picture with the rotary cutter, the bushing set BW15056 is shown. These bushings allow the hooks on the iMatch and the pins on the rotary cutter to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

• Upper bushing
  • Inside diameter: 1.93 to 1.96 cm (0.76 to 0.77 in.)
  • Outside diameter: 3.15 to 3.18 cm (1.24 to 1.25 in.)

• Lower bushings
  • Inside diameter: 2.24 to 2.26 cm (0.88 to 0.89 in.)
  • Outside diameter: 3.63 to 3.66 cm (1.43 to 1.44 in.)

iMatch Quick-Hitch dimensions

iMatch Quick-Hitch implement geometry

iMatch AutoHitch is the next generation of the successful iMatch Quick-Hitch that allows operators to hook up the PTO shaft of certain PTO-driven implements. This revolutionary system is the first of its kind, allowing the operator to change from a compatible rotary cutter to a compatible rotary tiller without leaving the seat of the tractor.

John Deere continues to lead the way with innovative designs that ensure operators can quickly and easily change implements and attachments on the compact utility tractors with no tools and little experience needed.

Overview

Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.

To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.

You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.

Any size and type of operation will appreciate the features in Equipment Mobile. View help documentation to learn more about the application.

A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)

Benefits

Equipment Mobile:

• Quickly scan the PIN to access maintenance, parts, and manual information
• Conveniently access and share Diagnostic Trouble Codes for troubleshooting
• Receive maintenance reminders and parts recommendations to minimize downtime
• Access equipment that is already loaded into your Operations Center account by logging into Equipment Mobile with your John Deere account login
• Create daily checklists to increase efficiency

Additional details

Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.

Users can still benefit from Equipment Mobile if they do not have a Smart Connector.

Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.

To pair the John Deere Smart Connector with a phone and tractor, you must first be in range with the tractor equipped with the John Deere Smart Connector. Once the Smart Connector is plugged in and the tractor is keyed on, the Smart Connector will be available to pair within Equipment Mobile. The flow of pairing a Smart Connector in Equipment Mobile is shown below.
