Mastering Self-Propelled Sprayers: Nozzle Selection, Sizing & Maintenance with John Deere

Mastering Self-Propelled Sprayers: Nozzle Selection, Sizing & Maintenance with John Deere

If you're using a John Deere self-propelled sprayer, the right nozzle setup can make or break your application. From precise herbicide coverage to effective fungicide or fertilizer delivery, nozzle choice directly impacts droplet size, spray pattern, and drift potential. In this guide, we will break down nozzle types, flow rate sizing, and key maintenance steps to keep your sprayer performing like new.

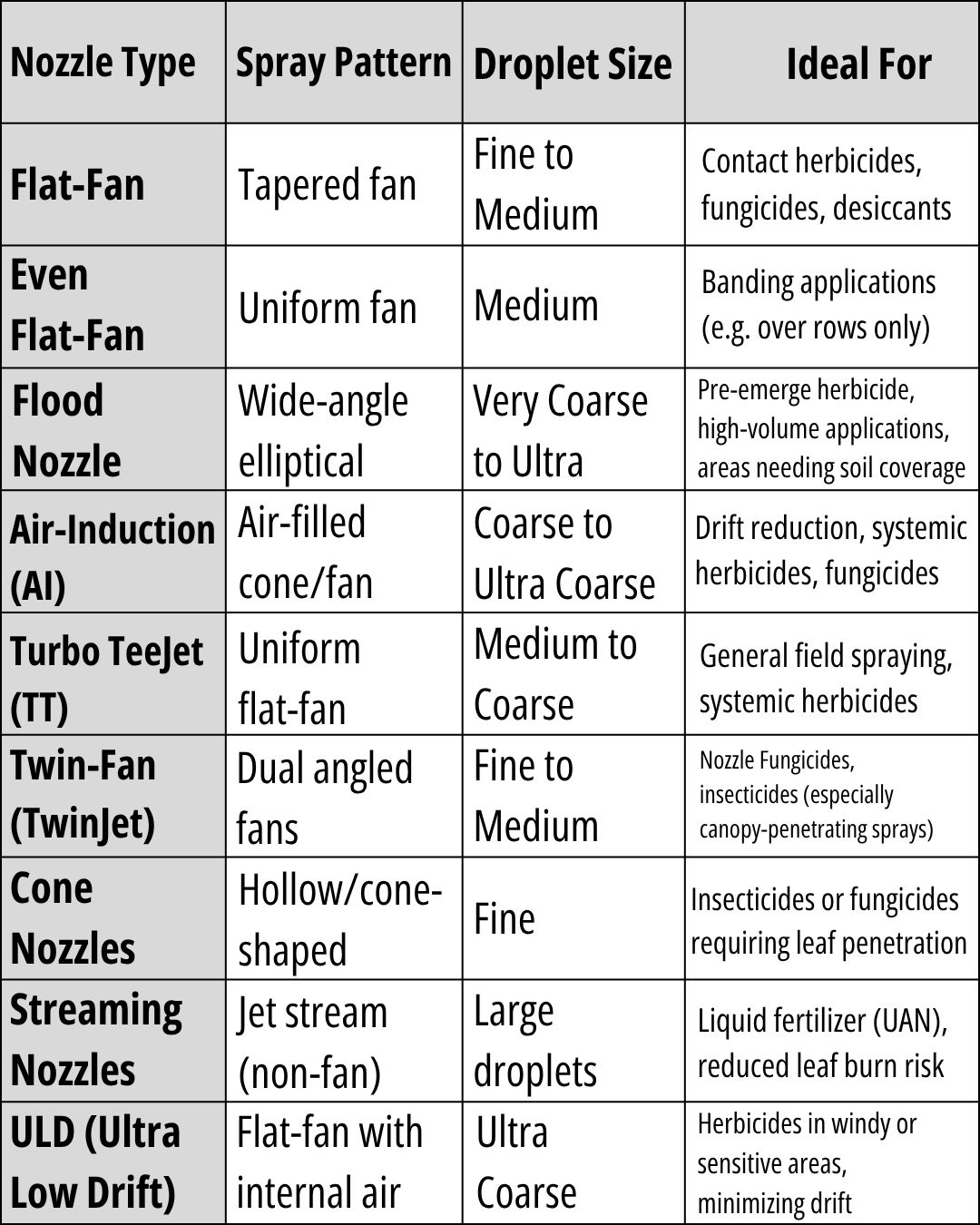

Sprayer Nozzle Types and Ideal Uses

Understanding nozzle types is step one. Here is a breakdown of the most common nozzles, their ideal uses, and droplet sizes:

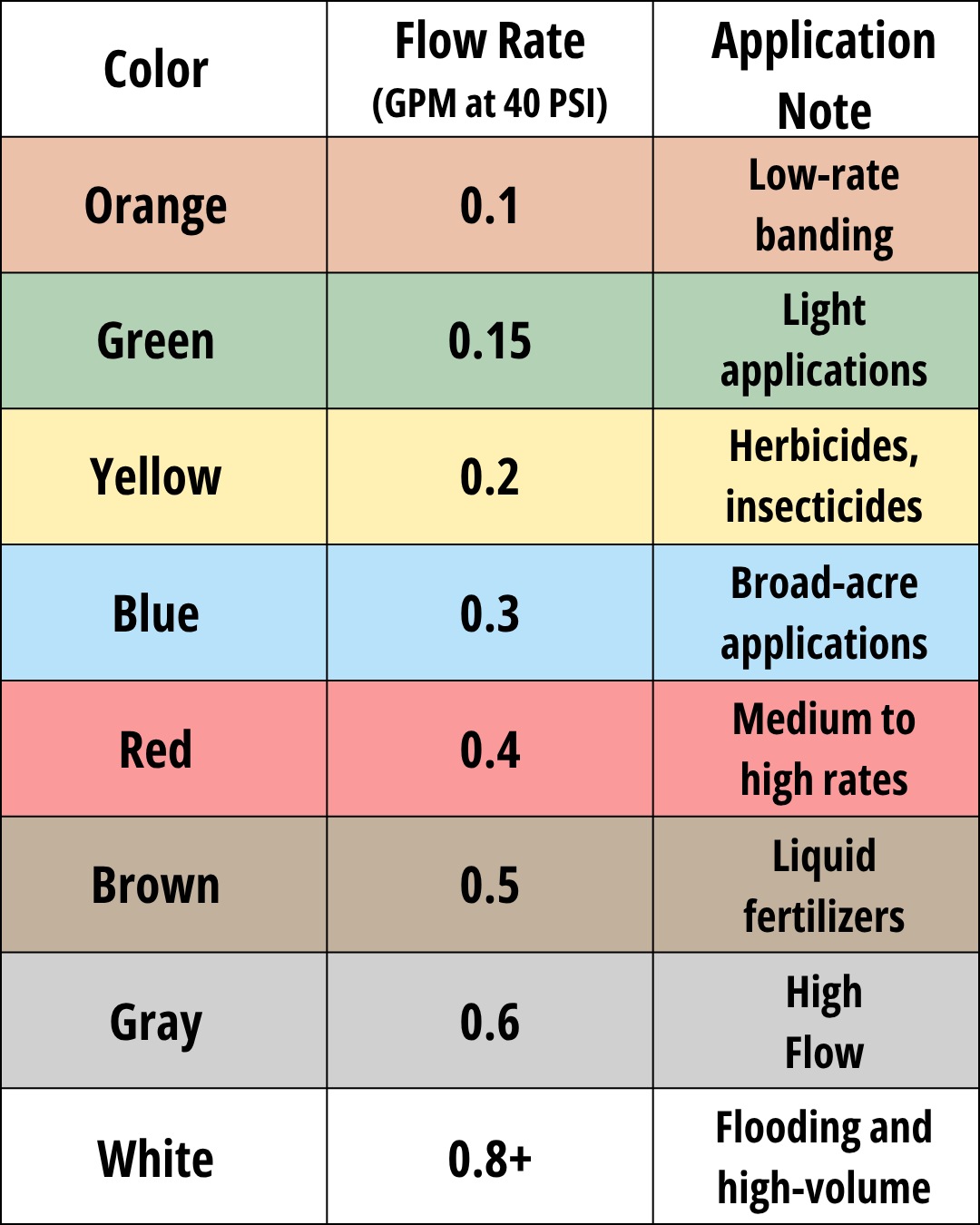

Understanding Nozzle Color Coding

Each nozzle is color coded based on flow rate at 40 PSI. This standardization helps you match nozzles and spray rates easily.

Flow Rate Formula for Selecting Tip Size

Use this formula to determine the GPM each nozzle must deliver:

(MPH x GPA x Nozzle Spacing) / 5940 = GPM per nozzle

Example:
Sprayer Speed = 12 MPH
Desired Rate = 15 GPA
Nozzle Spacing = 20"
(12 x 15 x 20) / 5940 = 0.61 GPM per nozzle

Check your result against a spray nozzle sizing chart to find the nozzle that provides the closest GPM at your desired pressure.

Nozzle Maintenance Tips

Clean nozzles = consistent performance. Follow these steps:

1. Remove and Clean Nozzles Safely
   Remove tips carefully.
   Clean with a non-metallic brush or soak in warm water.
   Avoid blowing out with your mouth, use compressed air if needed.
   Our SpotOn Nozzle Cleaning Kit makes this easy, with soft brushes, filters, and nozzle tools.
2. Inspect O-Rings and Filters
   Check O-rings for wear or cracks.
   Remove debris from in-line and tip strainers.
   Replace damaged parts before reassembly.
3. Reinstall Correctly
   Firmly push nozzle tips back into place with clean O-rings.
   Ensure they are seated properly to prevent leaks or uneven spray.

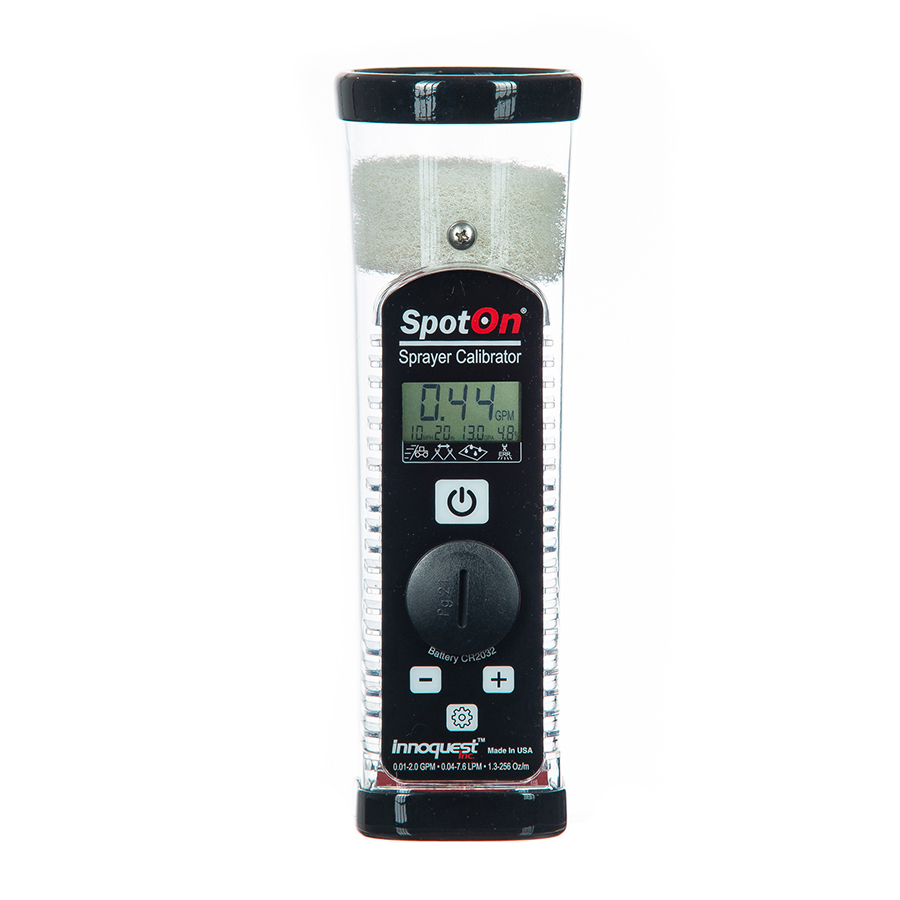

Final Step: Calibrate with SpotOn Sprayer Calibrator

To make sure your nozzles are delivering the correct flow:

Use the SpotOn Sprayer Calibrator to check GPM output per nozzle. Detect early signs of wear or clogging. Adjust or replace nozzles that don not meet your calculated flow rate. This small step can prevent costly misapplications and ensure your crop gets the treatment it needs.
